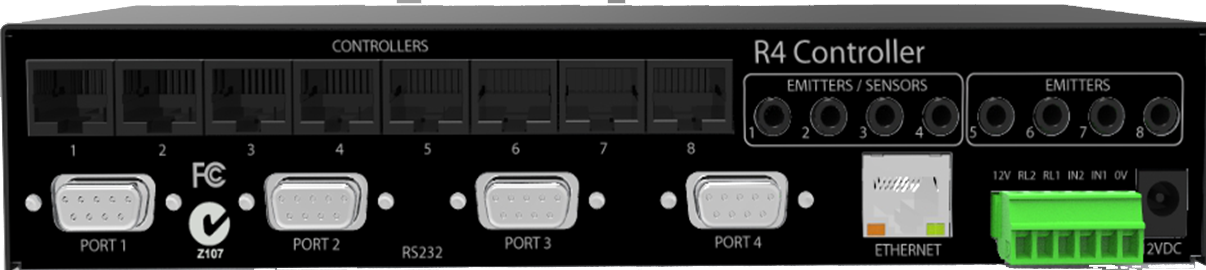

AX-R4 Controller

The NEW Axium R4 Controller Unlocking the full potential of the KPC and KPD keypads and enhancing both the Android and Apple experience.The AX-R4 facilitates 2-way communication between the KPC, KPD, Mobile Android and iOS devices and a wide range of 3rd party products bringing Metadata back from these devices to the end user.Balanced feeds from the AX-R4 to the KPC and KPD keypads allow for cable runs of up to 100 meters.

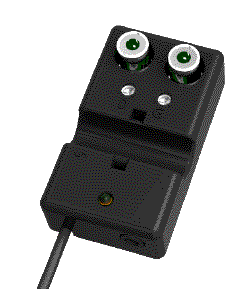

With 2 way routed RS232, Ethernet, routed IR, real timeclock with internet lookup, Analog level detect inputs, command match triggers and relay drivers, the power of 2 way communication is realised.The addition of AX-S4 sensors provides detection of Audio, Video or Current enabling enhanced flag control.

4 x RS232 DB9
8 x Axium Keypad RJ45 ports
Configuable IR code detect triggers
Maximum of 32 IP connections
Configurable IP code specific detection triggers.
4 x IR emitter output / sensor inputs : t.
4 x IR emitter outputs
Realtime internal clock, astronical clock and time based scheduled tasks
2 x Analog level threshold triggers: 0 - 10V I
2 x 12VDC Relay drivers: 300mA max active pulldown.

$1999

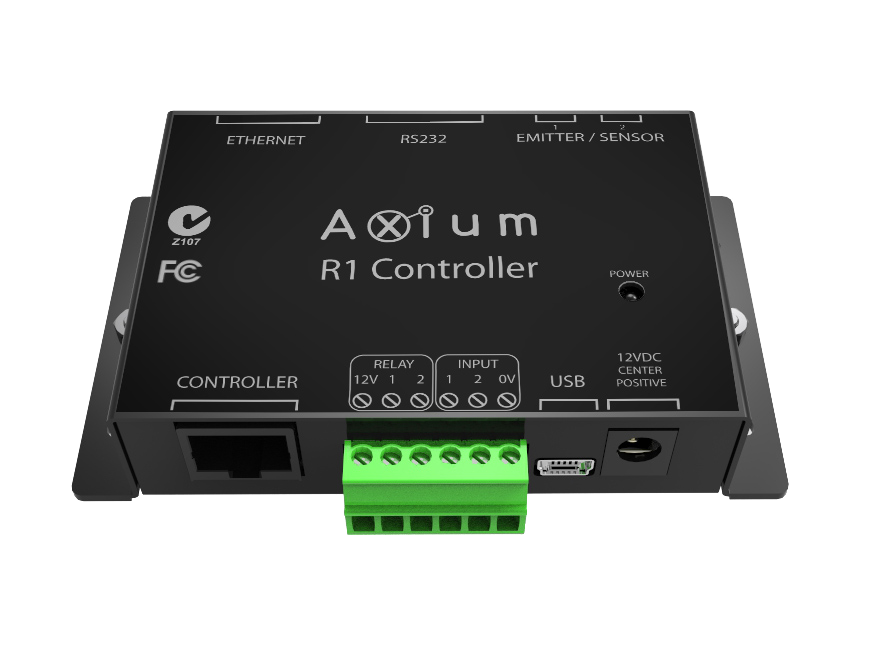

AX-R1 Controller

The NEW Axium R1 Controller ,Android and Apple experience.The AX-R4 facilitates 2-way communication between the KPC, KPD, Mobile Android and iOS devices and a wide range of 3rd party products bringing Metadata back from these devices to the end user.Balanced feed from the AX-R1 to the KPC and KPD keypads allow for cable runs of up to 100 meters.

With 2 way routed RS232, Ethernet, routed IR, real timeclock with internet lookup, Analog level detect inputs, command match triggers and relay drivers, the power of 2 way communication is realised.The addition of AX-S4 sensors provides detection of Audio, Video or Current enabling enhanced flag control.

1 x RS232 DB9
1 x Axium Keypad RJ45 ports
Maximum of 16 IP connections
Configurable IP code specific detection triggers.
2 x IR emitter output / sensor inputs
Realtime internal clock, astronical clock and time based scheduled tasks
2 x Analog level threshold triggers: 0 - 10V I
2 x 12VDC Relay drivers: 300mA max active pulldown.

Although the AX800, the 8 IR ports on the AX800 can be used as a controller from your IOS and android device with your own Gui design via Design Prtal softwae.

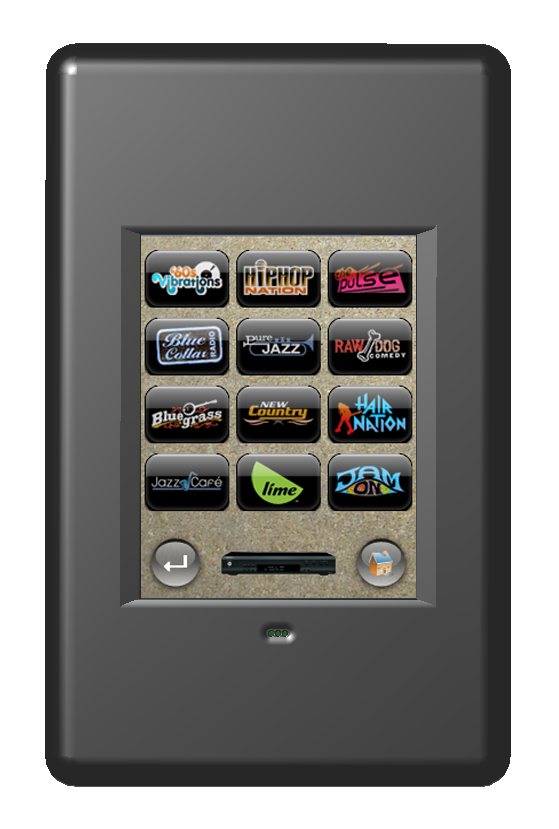

The Axium KPC 2.8 Keypad is a programmable 2.8” Colour LCD Touch screen. When the KPC 2.8 is used with an Axium multi-zone amplifi­er, full 2 way feed-back of source selection, power, mute and volume status is provided. The KPC 2.8 is also capable of learning and sending IR commands and can also be used as a standalone keypad to control virtually any IR or RS-232 capable device.

Now has Ethernet with POE

Data sheet here

•50Watts per channel 8 ohm - 4 ohm capable
•Output short cct, thermal and hard clipping protection
•11 Sources1-6 either Analogue, or Coax Digital Audio (PCM)- 7-8 either Coax or Optical Digital Audio (PCM)- 9 is streamed from the USB Host, or Ethernet- 10-11 are internal Door-Bell .wav playback sources

•10 Buffered IR Outputs. 1-8 have routing, 9-10 summed
•Zone 1-4 have a 4 source composite video switcher
•Internal real time clock
•Keypad/IR connection for every zone
•USB, RS232 and Ethernet interface
•AMP-On Status: 12VDc Outputs
•Setup lockout

Data Sheet here

Of course there is USB, RS232 & Ethernet connectivity, routed IR outputs, 2 lit doorbell compatable triggers, amp on's, individual

keypad connections, a legacy keypad connector & an amplifier expansion port offering unrivalled connectivity up to 96 zones.

With adjustable input levels, more presets, wider zone linking, 2 doorbell inputs for stored music with more memory for longer playback, massively improved standby & operational efficiencies and a significant refinement in sound quality, like the AX-800DAV this is an evolutionary

• 50Watts per channel 8 ohm - 4 ohm capable
• Output short cct, thermal and hard clipping protection
4 zones Bass, Treble, Balance, Loudness adjustment per zone

6 Source Inputs
1 - 4 Analogue, or Coax Digital
5 - 6 Optical or Coax Digital
Storage for up to 10 seconds of 44.1 KHz 16 Bit stereo

• 8 Buffered IR outputs
• Internal real time clock
• Internal Web Page
• 14 Presets command
• Extensive zone linking
• AMP-On Status: 12VDC Outputs
• Setup lockout

Data Sheet here

New features in V2

2 way Scripts available

API documet available for those who would like to write there own scripts. ( available on request)

Axium Media Player ( access music from USB, Harddrive or NAS)

Nad Receiver
Sonos
Bititino
C-bus
Many more to come..
